UNTERKONSTRUKTION (ohne Module)
| Schrägdach | Geeignet für Modulanzahl | |||||
| 2 | 4 | 10 | 24 | 36 | ||
 |
Tragschienen | x2 - 2425mm | x4 - 2425mm | x4 - 2425mm |
x12 - 3575mm |
x16 -3575mm |
 |

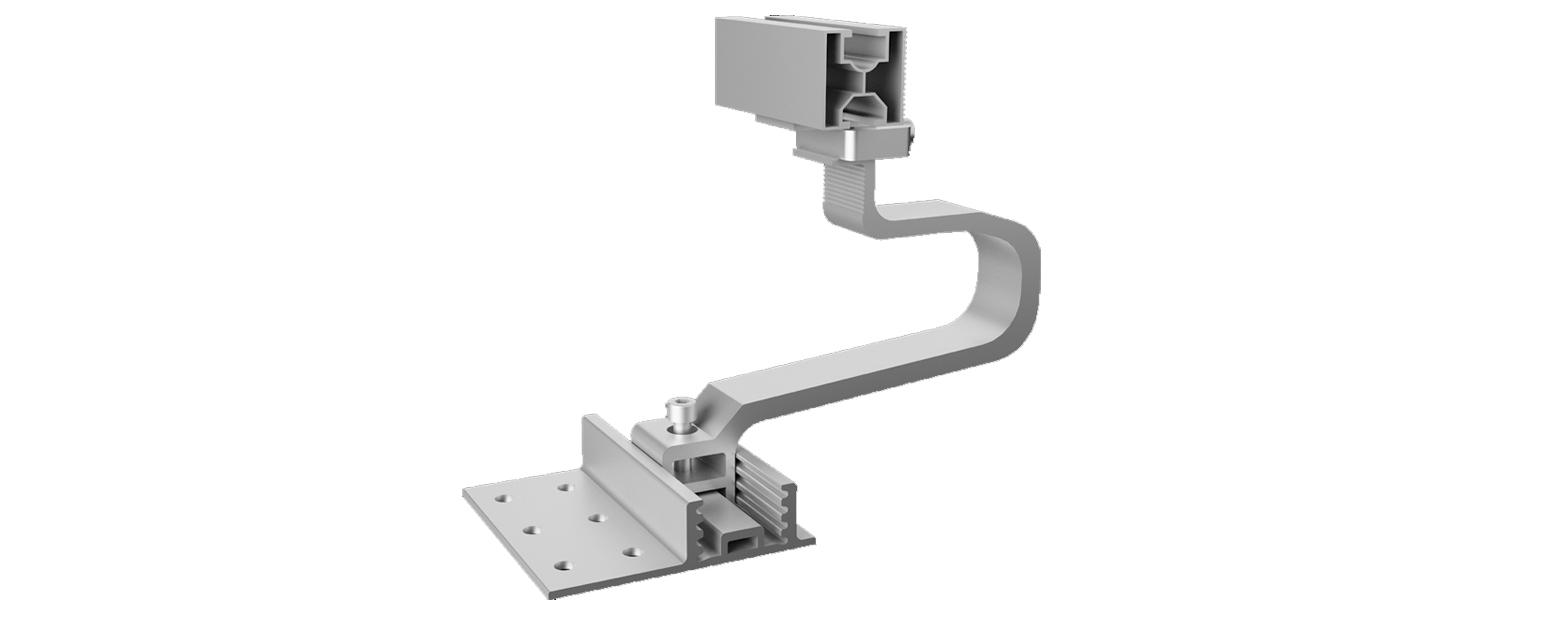

Dachhaken | x6 | x8 | x20 | x48 | x72 |
 |
Mittelklemme | x2 | x6 | x16 | x40 | x60 |
 |
Endklemme | x4 | x4 | x8 | x20 | x30 |
 |
Endkappen | x4 | x4 | x8 | x20 | x30 |
 |
Hammerkopfschraube | x6 | x8 | x20 | x48 | x72 |
 |
Flanschmutter | x6 | x8 | x20 | x48 | x72 |
 |
Verbinder | x3 | x8 | x20 | x30 | |
| Schrägdach | Geeignet für Modulanzahl | |||||
| 2 | 4 | 10 | 24 | 36 | ||
 |
Tragschienen | x2 - 2425mm | x4 - 2425mm | x10 -2425mm |
x12 - 3575mm |
x16 -3575mm |
 |
Dachhaken | x6 | x8 | x20 | x48 | x72 |
 |
Mittelklemme | x2 | x6 | x16 | x40 | x60 |
 |
Endklemme | x4 | x4 | x8 | x20 | x30 |
 |
Endkappen | x4 | x4 | x8 | x20 | x30 |
 |
Verbinder | x3 | x8 | x20 | x30 | |
